Wet Blasting Equipment

SP1580 Single-Piece Wet Blasting Equipment

Single-insert wet blasting with adjustable nozzles, controlled part rotation and automated loading and unloading.

Process Overview

Single-Insert Treatment and Process Development

The SP1580 treats one workpiece held in a clamp. Replaceable clamping adapts the holding arrangement to different workpieces, while the insert tray and grasping mechanism support automated loading and unloading.

The blasting chamber combines controllable push-rod rotation with adjustable nozzle angles. Linked X/Y/Z handling and PID pressure control form part of the single-piece treatment system for cutting inserts and R&D.

Equipment Features

Single-piece blade treatment
K-value control
Automated insert loading and unloading
Published blade honing accuracy: ±1.5 µm

Equipment Details

SP1580 Components

Blasting

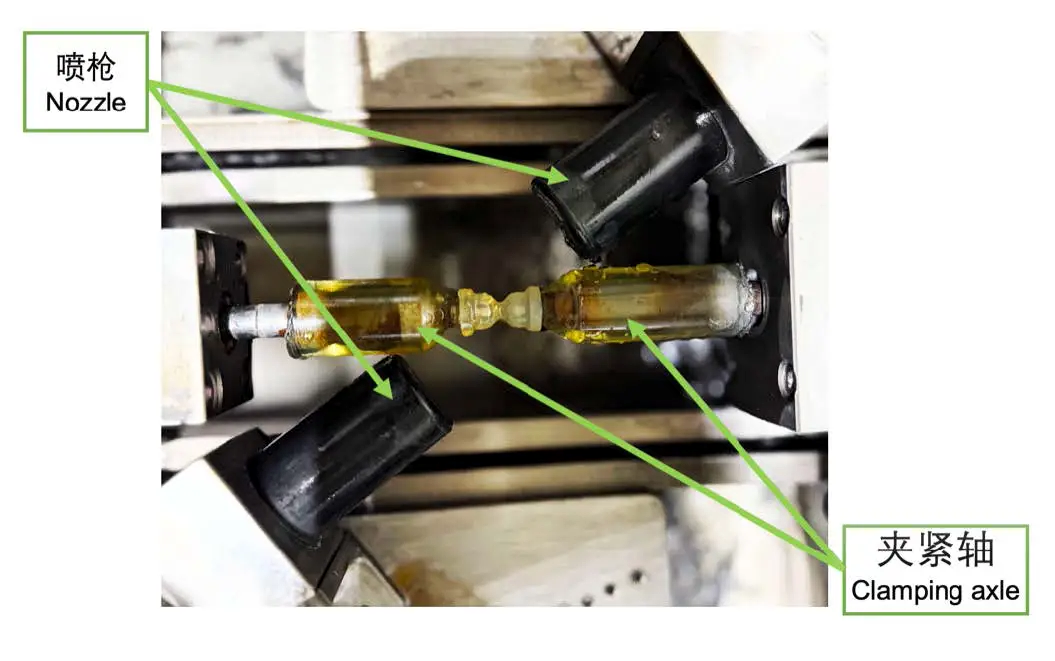

Sand Blasting Chamber

Single-insert clamping
Controllable push-rod rotation speed
Nozzle angle adjustable

Insert Handling

Transmission Chamber

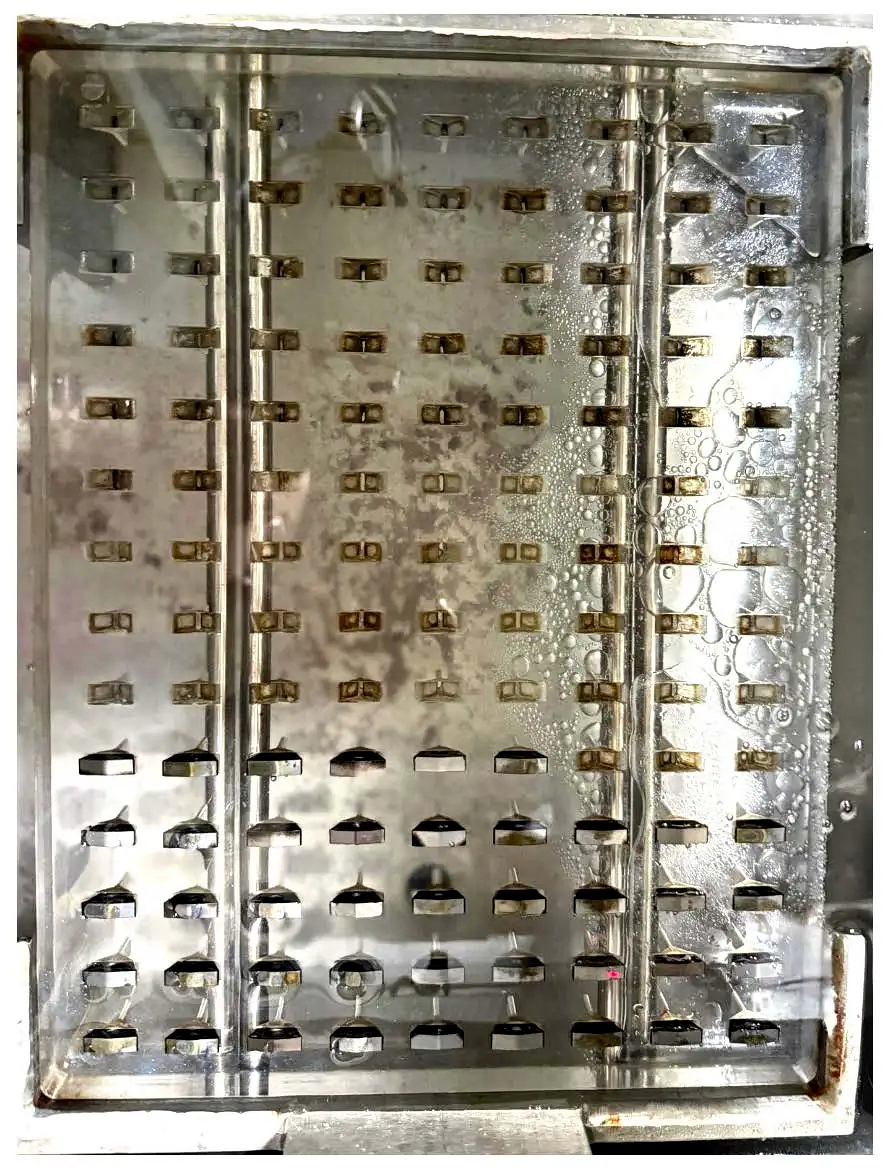

Specialized insert tray
Anti-oxidant added
Up to 126 inserts

Original SP1580 XYZ insert grasping mechanism illustration

Insert Handling

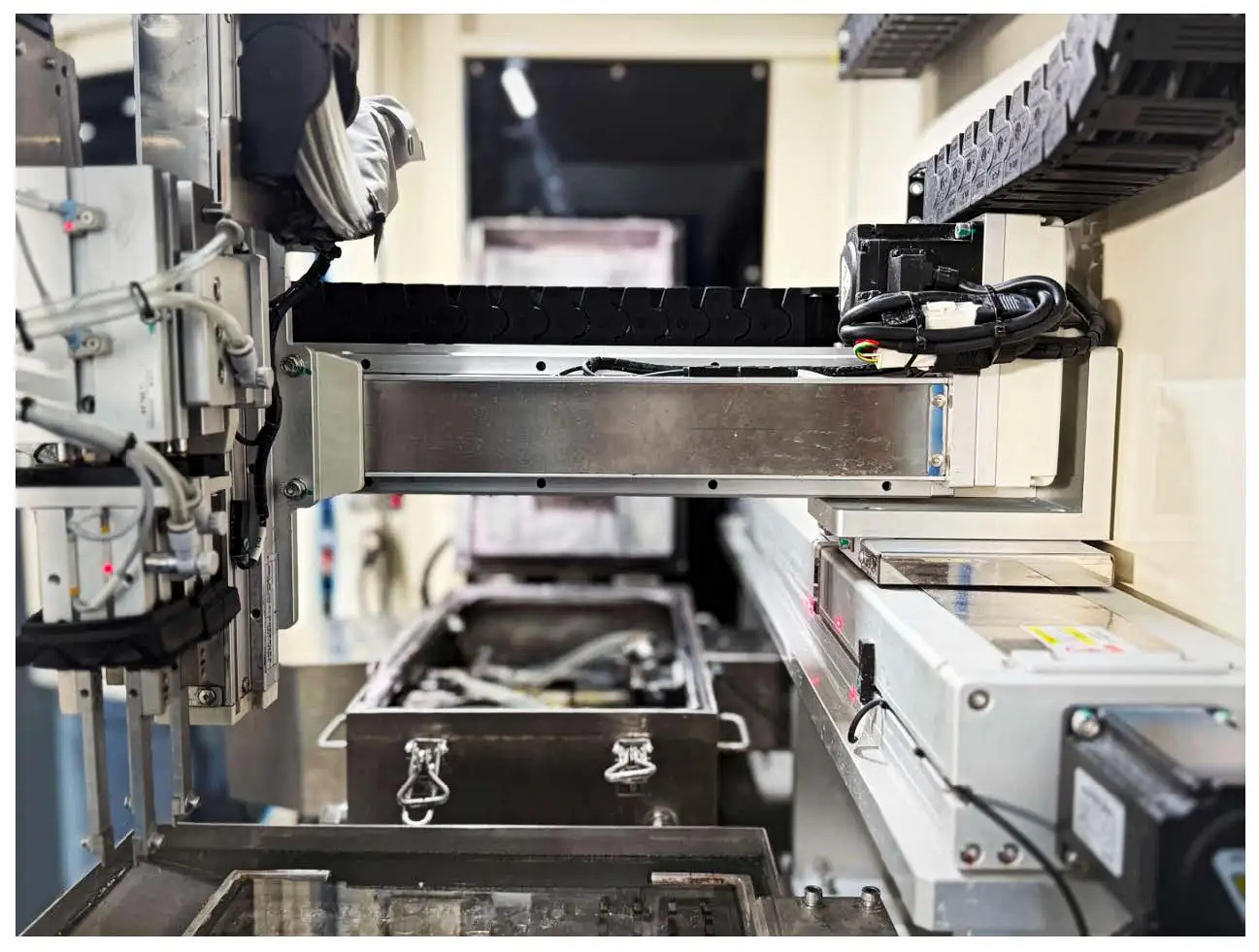

Insert Grasping Linkage Mechanism

Linked X/Y/Z axis control
Module and servo motor; published control accuracy 0.02 mm
Closed module design

Pressure Control

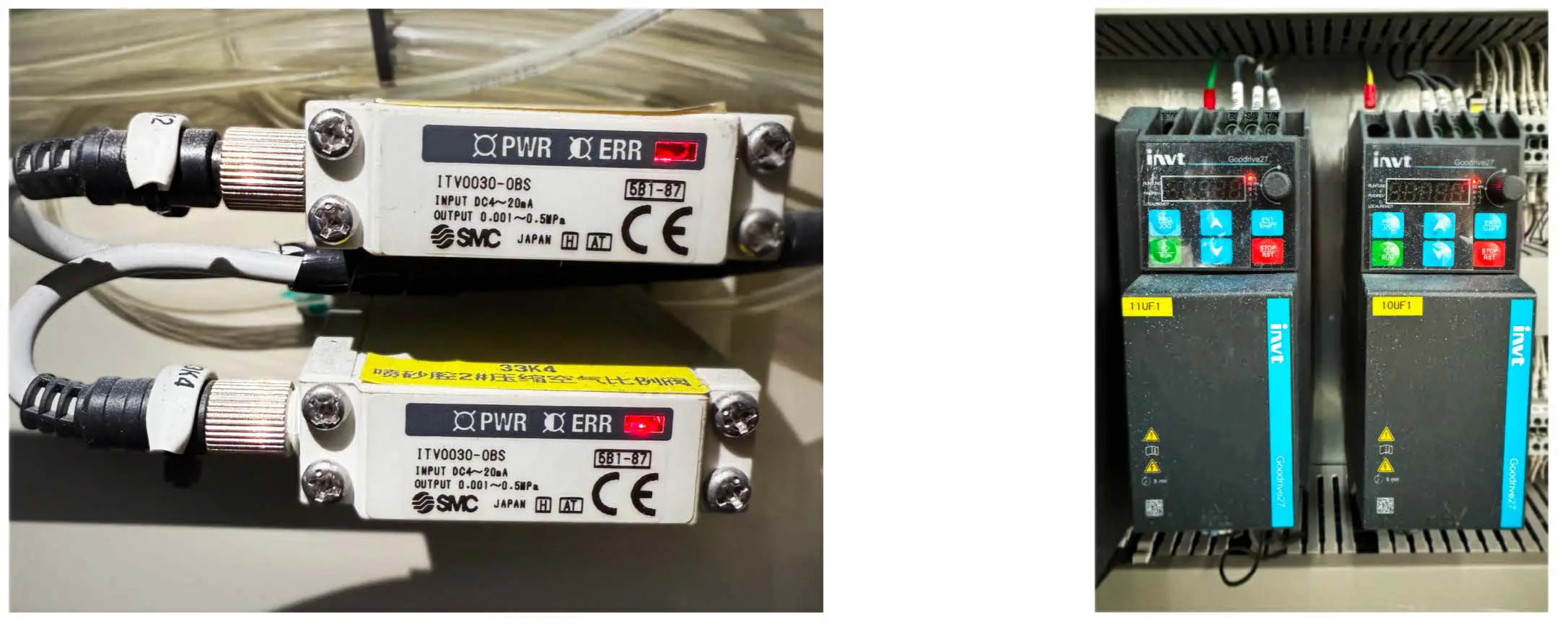

PID Closed-Loop Control

Constant and precise pressure
Stable slurry pressure

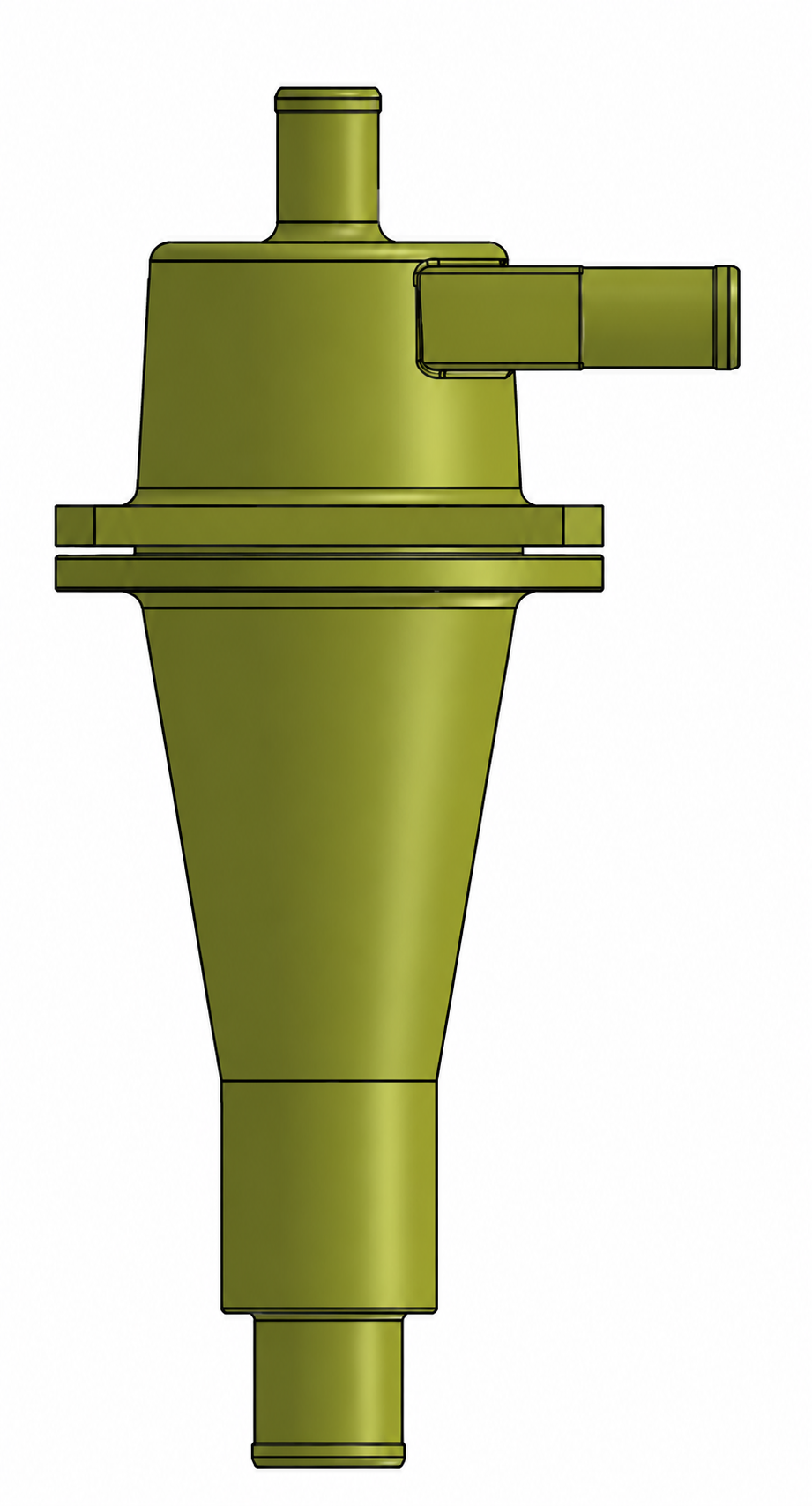

Original SP1580 separation-device illustration — Separation-device illustration from the published SP1580 product material; confirm the supplied configuration.

Media Management

Waste and Separation Device

Compact structure
High-precision separation
High-efficiency separation

Media Management

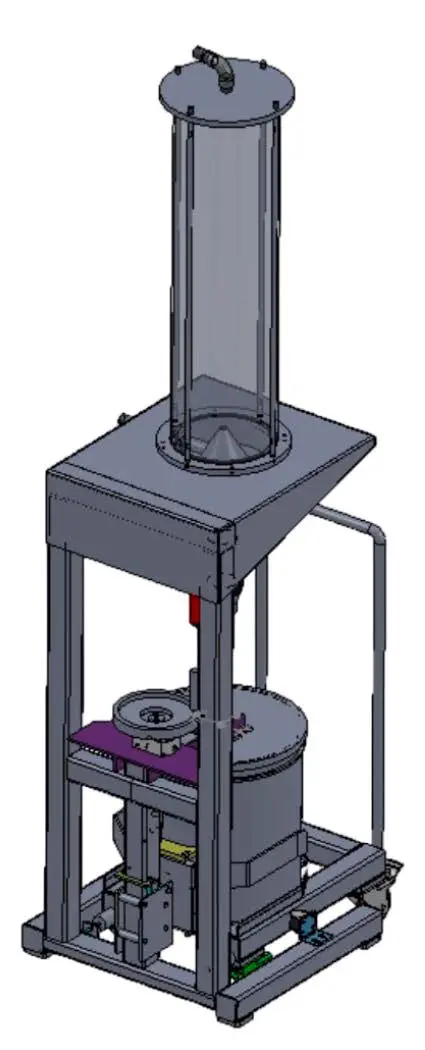

Waste Sand Recycling Device

Automatic sedimentation of waste sand
One-click discharge waste sand
Quick and easy maintenance

Mist Extraction

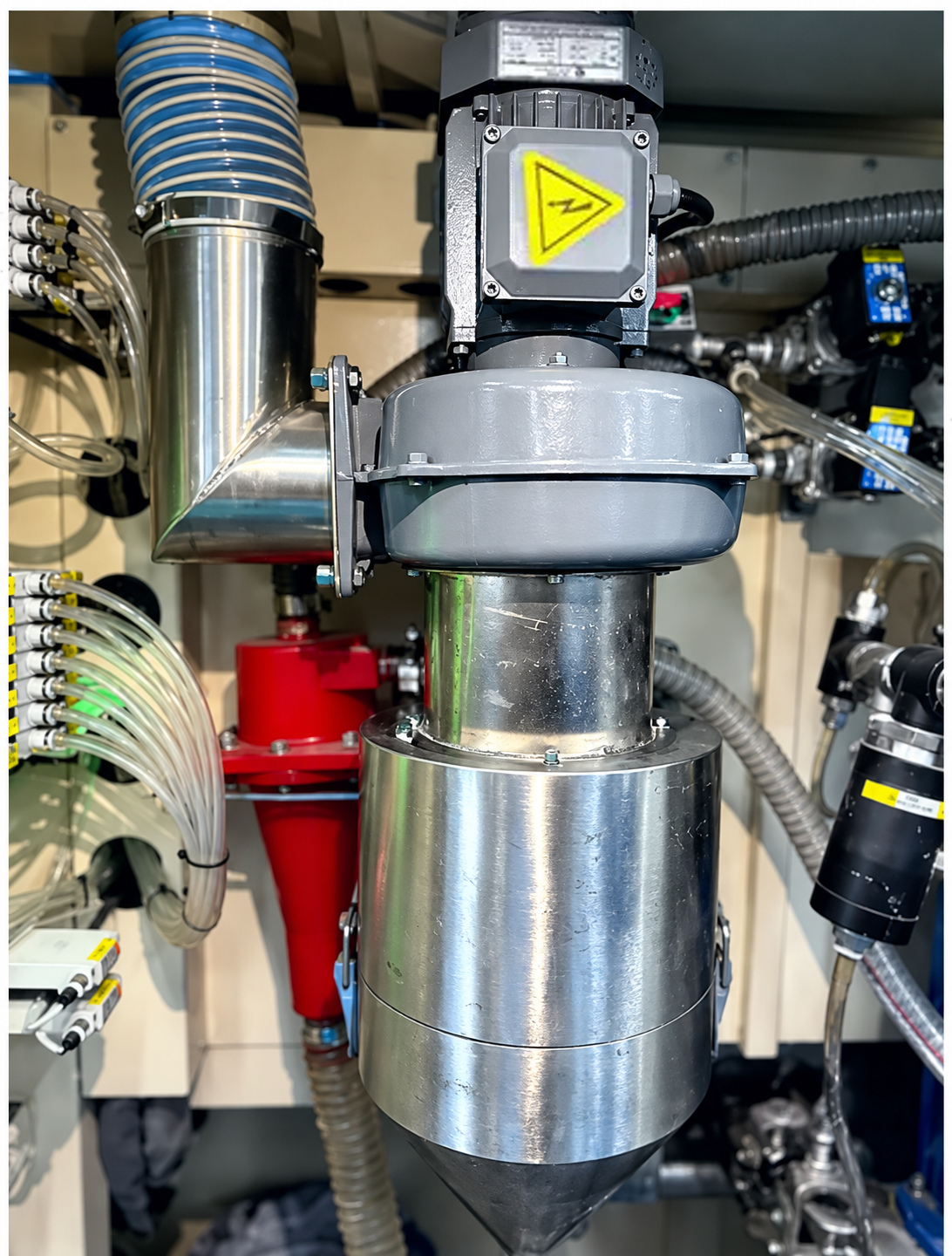

Dust Collection Fan

Equipped with dust collection fan
Reduce water mist from sand blasting
Water mist extraction

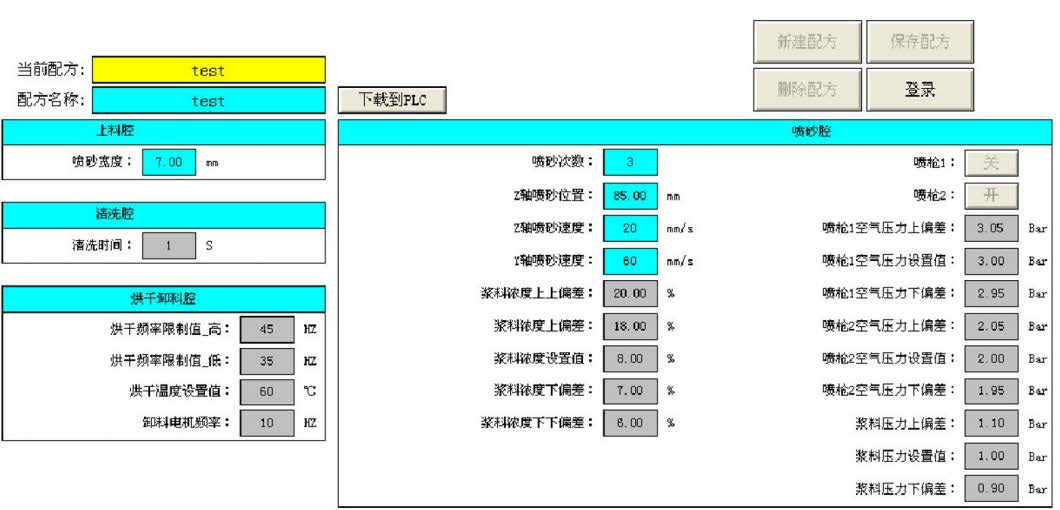

SP1580 HMI operation screen from the original equipment page

Controls

HMI Operation System

Technical Data

SP1580 Specifications

Insert Handling and Processing

Insert Incircle: 6.35-25.4mm
Insert Thickness: 2.4-9.5mm
Sand Requirement: White alumina / Chrome alumina, mesh 220/320
Efficiency: 100-120 pcs/hour

Installation and Supply

Power Supply: 3-phase 5-wire, AC 380V, 50Hz, 4kVA
Compressed Air: Pressure: 0.5~0.6MPa·G, Flow rate: 50m³/h
Total Weight: 1.5 tons
Dimensions: L1580mm × W1100mm × H1780mm

Specifications shown are from the published product information. Confirm the insert geometry, fixture, K-value definition, measurement conditions and cycle requirements. The published accuracy and hourly output depend on the agreed workpiece and operating conditions.

Application Fit

Define Your SP1580 Configuration

Define the insert and edge profile before matching the clamp, nozzle settings and handling sequence.

Insert Geometry: Insert material, incircle, thickness, drawing and clamping surfaces.
Edge Profile: Required edge radius, K-value definition and the inspection method.
Handling and Output: Tray arrangement, insert variants, changeovers and required hourly output.
Installation Conditions: Available space, electrical supply, compressed air and the proposed abrasive.
