Wet Blasting Equipment
CP1800 Wet Blasting Equipment for Complex Parts
Wet blasting, degreasing and cleaning for complex parts, with clamping, loading and nozzle configurations matched to the workpiece.
Process Overview
Wet Blasting for Complex Part Geometry
The CP1800 is designed for degreasing complex-shaped workpieces, with automatic cleaning and rinsing. Workpiece examples include forgings, castings, 3D printed parts and gears; changing the clamping arrangement adapts the setup to different parts.
Automatic or manual front-loading systems, customized hangers, and loader/unloader options can be matched to the part. The blasting chamber also offers options for one or more blast nozzles and workpiece rotation.
Equipment Details
CP1800 Components
Controls

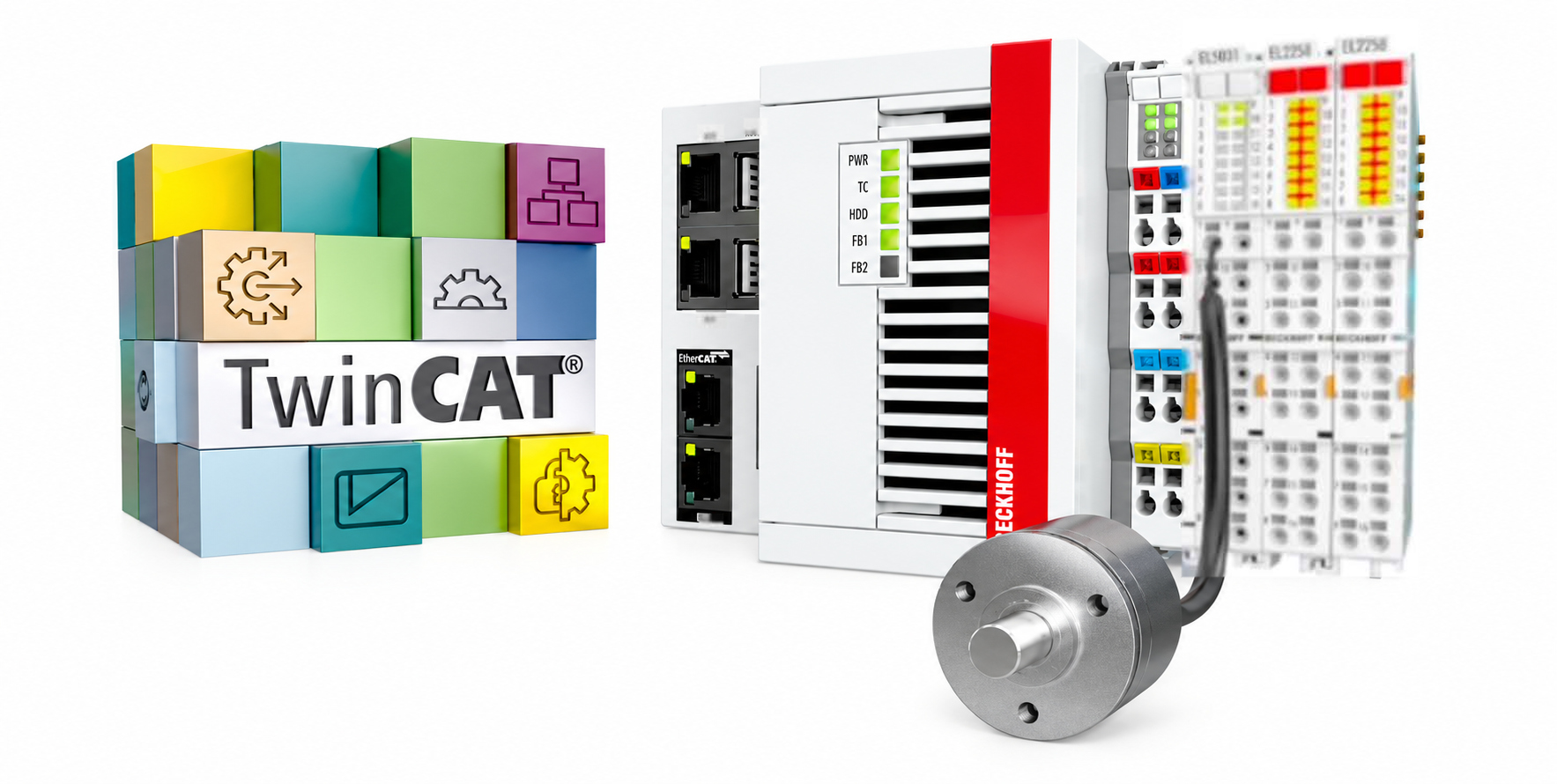

Control System
- German Beckhoff control system
- Safe and reliable
- Integrate MES & ERP
- French Schneider intouch human-machine interaction interface
- Simple & efficient remote control and maintenance
Part Handling

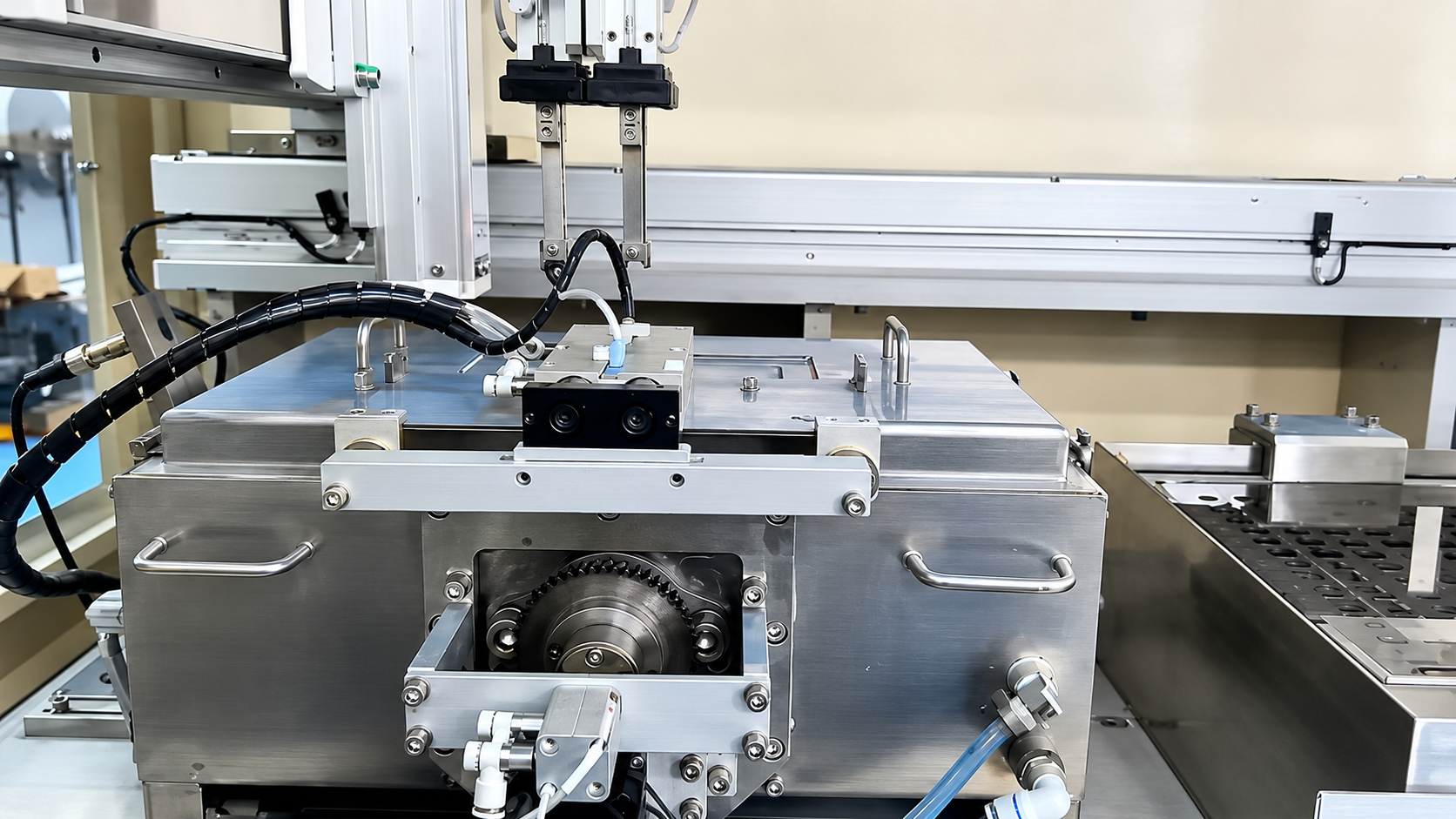

Loading & Unloading Units
- Automated or manual front-loading systems optional
- Customized hangers for different complex parts optional
- Mobile rigs allows for bulk loading of abrasive media (e.g.recycled glass or aluminum oxide)
Blasting

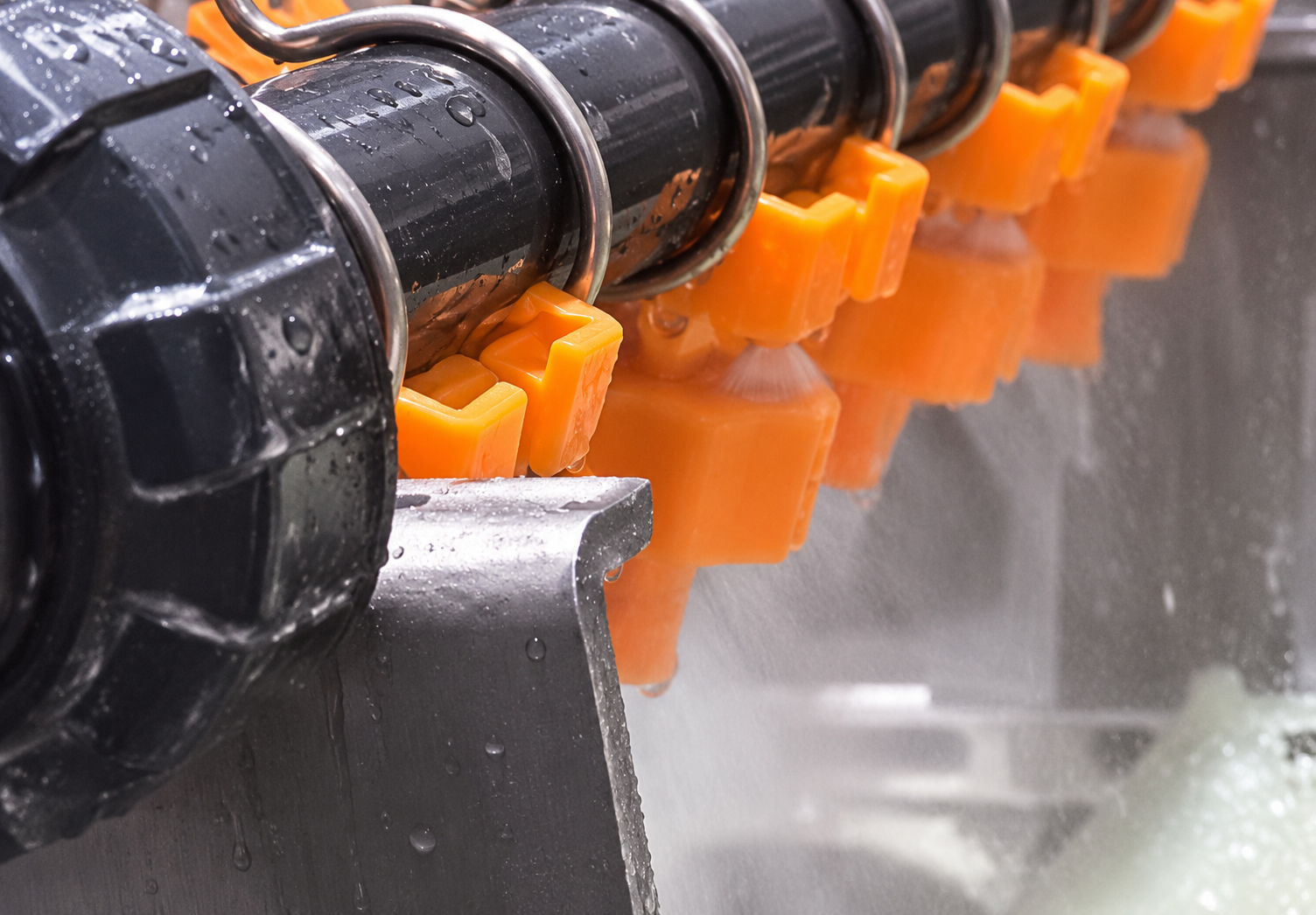

Blasting Chamber
- One or more heavy-duty blast nozzles optional
- Boron carbide nozzles directly push the slurry onto the part
- Rotation of workpiece for uniform cleaning possible
- Precise, hands-free operation allowable
Controls

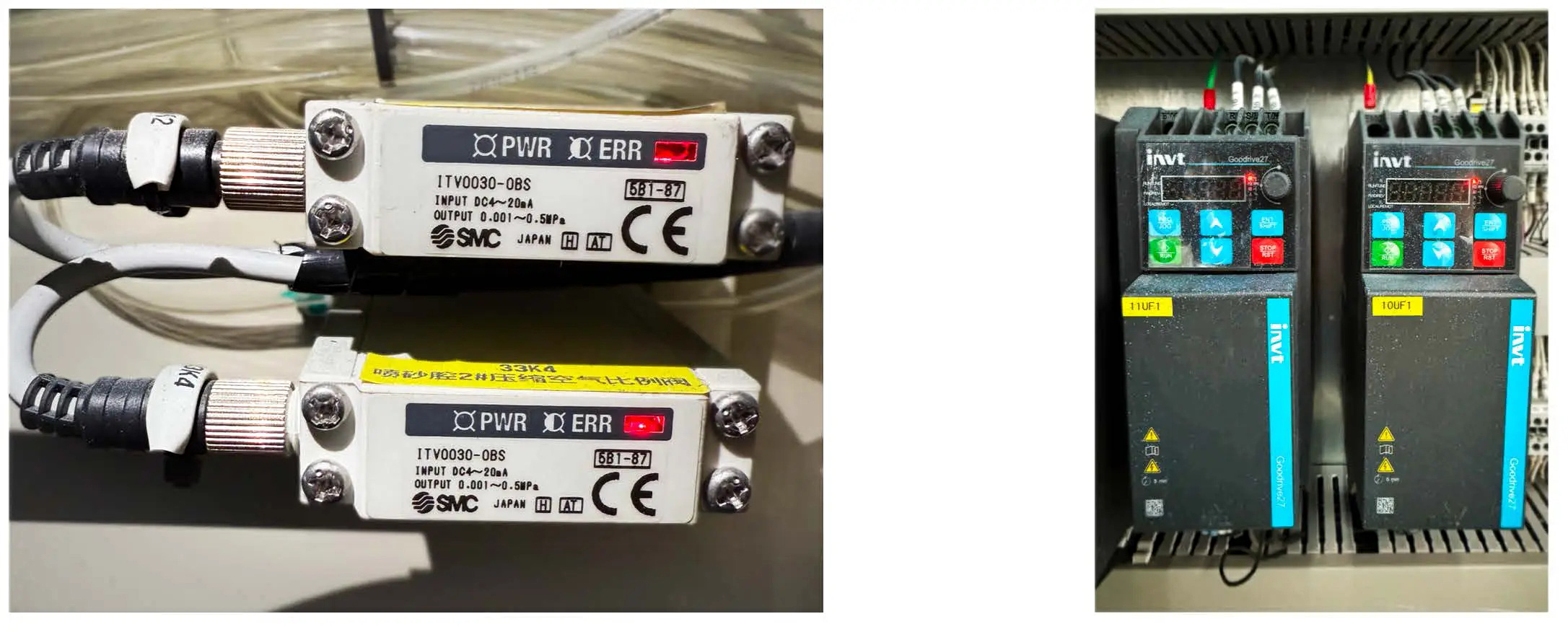

PID Closed-Loop Control
- Constant and precise pressure
- Stable slurry pressure
Media Handling

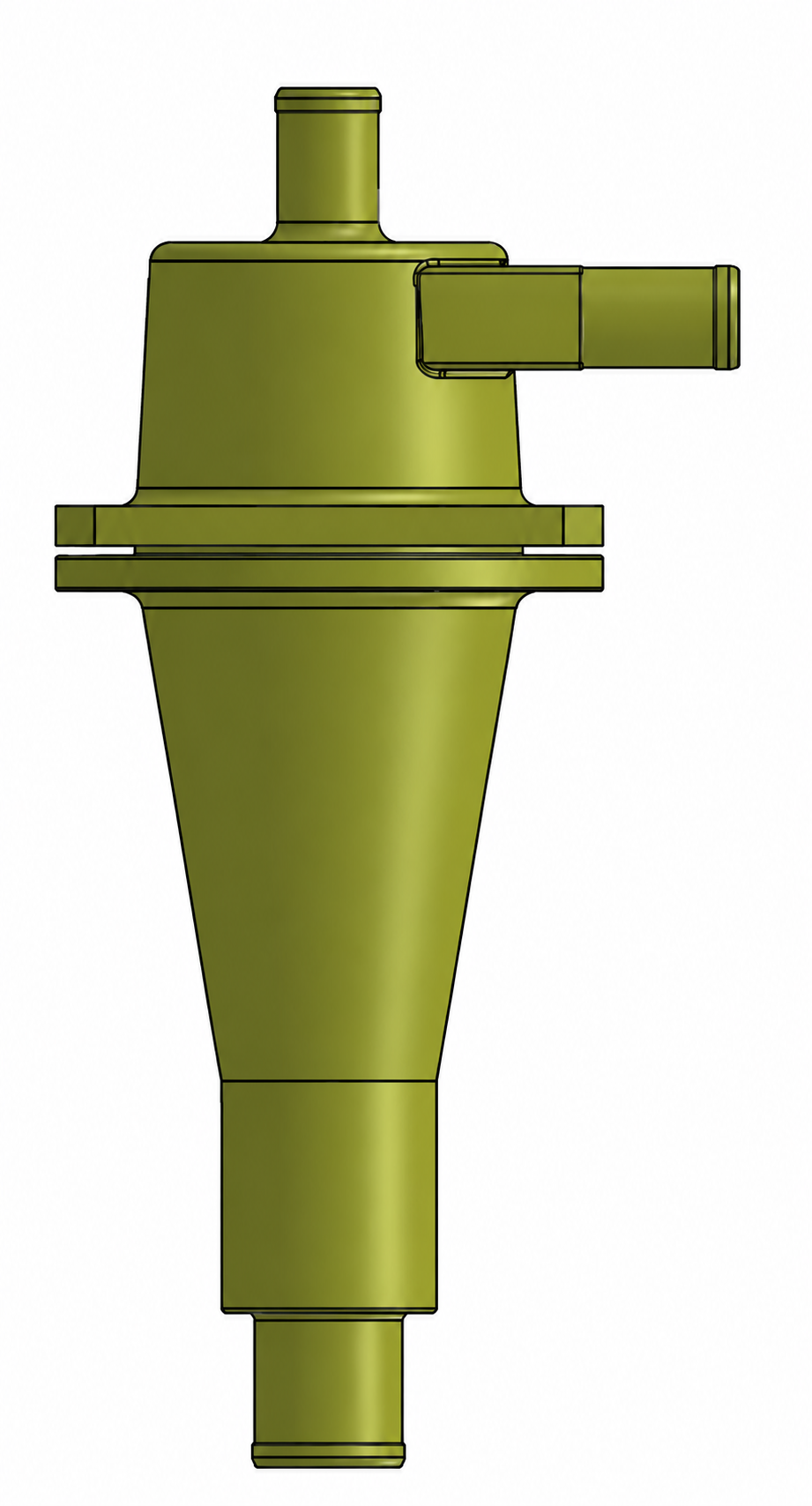

Waste and Separation Device
- Compact structure
- High-precision separation
- High-efficiency separation
Technical Data
CP1800 Specifications
Workpiece and Operation
- Dimension
- 1800(W) X 600(D) X 800(H)mm
- Workpiece Size
- Complex dimension possible
- Conveyor Speed
- <5m/min
Supply and Options
- Powder Supply
- AC 350V, 50HZ
- Air Supply Pressure
- 0-0.7MPa
- Options
- Loader, unloader, clamp, abrasive customized
Specifications shown are from the published product information. Confirm the workpiece envelope, fixture and load limits, handling options and electrical supply for your application.
Application Fit
Define Your CP1800 Configuration
Use the part geometry and cleaning target to define the fixture, loading arrangement and nozzle configuration to discuss.
- Part Geometry
- Drawing or sample, material, dimensions, weight and the areas that need access for blasting.
- Treatment Goal
- Degreasing and cleaning requirements, abrasive choice and the required surface condition.
- Handling Arrangement
- Manual or automatic front loading, fixture or hanger design, and the required batch size.
- Installation Conditions
- Available space, electrical supply and compressed air at the proposed installation.
