TR2000 Spherical Alumina Abrasive for Edge Honing
Spherical high-purity alumina abrasive for insert honing and surface treatment before or after coating. The particles have high hardness and relative density and are less likely to chip or crack.
Material & Application
Spherical Alumina for Insert Surface Treatment

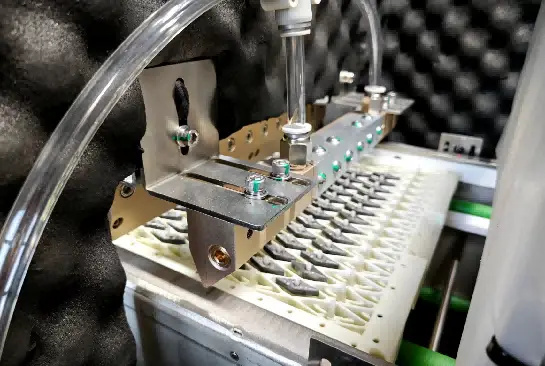

TR2000 is intended for precise processing of inserts, including honing and surface treatment before or after coating.

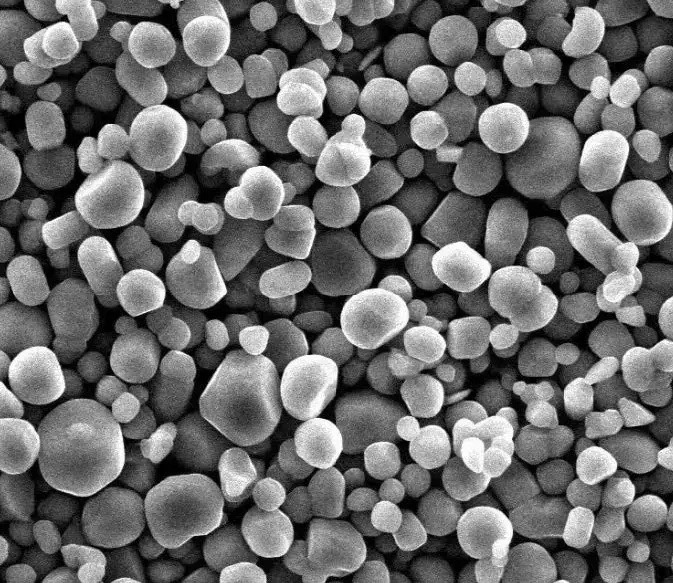

Spherical Alumina
A spherical abrasive made using high-purity alumina fine powder.
Particle Properties
High hardness and high relative density, with particles that are less likely to chip or crack.
Media Consumption
TR2000 is described as having lower consumption and producing less waste.
Applications
Explore Related Applications
Particle Size & Distribution

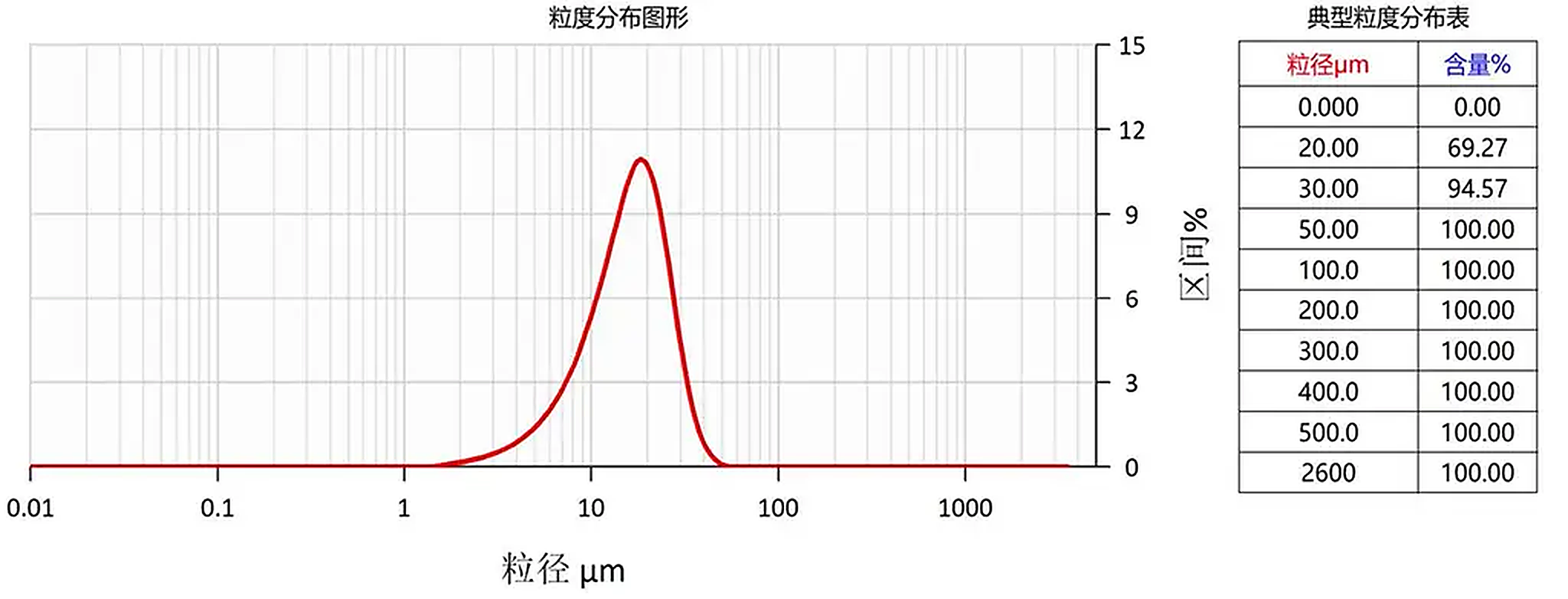

Published Distribution Example. The curve plots particle diameter (μm) against interval (%). The accompanying table is labelled typical particle size distribution; its columns are diameter (μm) and content (%).
This figure illustrates the published particle size distribution. It does not define the specification of every supplied grade or batch. Confirm the required media grade for your application.
Figure Data and Description
Figure Description
The example shows a single red interval curve against particle diameter (μm), alongside a typical particle size distribution table.
| Particle Diameter (μm) | Content (%) |
|---|---|
| 0.000 | 0.00 |
| 20.00 | 69.27 |
| 30.00 | 94.57 |
| 50.00 | 100.00 |
| 100.0 | 100.00 |
| 200.0 | 100.00 |
| 300.0 | 100.00 |
| 400.0 | 100.00 |
| 500.0 | 100.00 |
| 2600 | 100.00 |
Media Selection
Choose Media Around Your Processing Goals
Abrasive selection is a critical factor in achieving the desired wet blasting surface finish. We evaluate media against your processing conditions and goals, considering material type, shape, particle size, hardness and cost.
- Material
- Shape
- Particle Size
- Hardness
- Cost
