Explore TR1000The TR Series
TR4000 Stainless Steel Blasting Media for Metal Parts
Spherical stainless steel abrasive for metal-part deburring, peening and descaling. TR4000 is described as a low-wear medium with a long service life, recommended for stainless steel, titanium and aluminum workpieces.
Material & Application
Stainless Steel Media for Metal Surface Treatment
TR4000 is a spherical stainless steel abrasive for deburring, peening and descaling metal parts.
Stainless Steel
Spherical particles made from stainless steel.
Low Wear
TR4000 is described as a low-wear abrasive with a long service life.
Metal Workpieces
Recommended for wet blasting stainless steel, titanium and aluminum parts.
Applications
Explore Related Applications
Particle Size & Distribution
TR4000 particle sizes span 20–325 mesh. The following ranges are published as guidance for different treatment goals.
20–80 Mesh

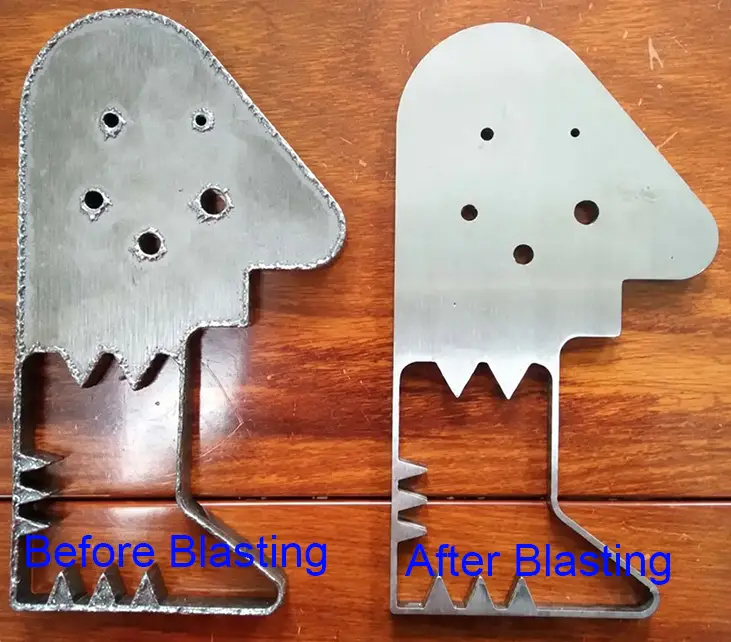

Heavy Cleaning & Deburring
Removal of heavy scale, rust and rough burrs.
80–150 Mesh
General Cleaning
Surface cleaning while limiting excessive damage or unwanted roughness.
150–325 Mesh
Electronics Finishing
Creating a uniform, aesthetic finish on electronic components.

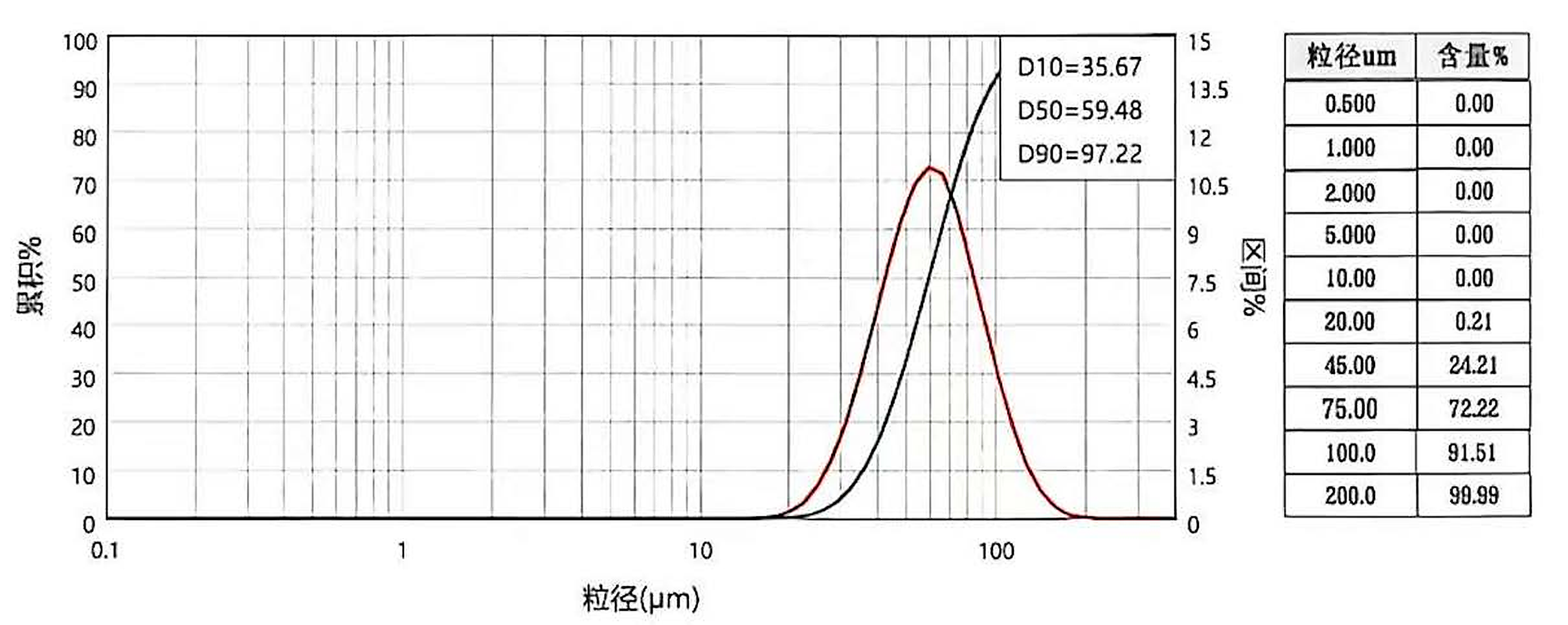

Published Distribution Example. Particle diameter (μm) is shown horizontally, with cumulative (%) and interval (%) axes. The values below are transcribed from this figure.
Values Shown in the Figure
- D10
- 35.67 μm
- D50
- 59.48 μm
- D90
- 97.22 μm
This figure illustrates the published particle size distribution. It does not define the specification of every supplied grade or batch. Confirm the required media grade for your application.
Figure Data and Description
Figure Description
The example shows a rising cumulative curve and a peaked interval curve against particle diameter (μm). The separate table lists particle diameter and content.
| Particle Diameter (μm) | Content (%) |
|---|---|
| 0.500 | 0.00 |
| 1.000 | 0.00 |
| 2.000 | 0.00 |
| 5.000 | 0.00 |
| 10.00 | 0.00 |
| 20.00 | 0.21 |
| 45.00 | 24.21 |
| 75.00 | 72.22 |
| 100.0 | 91.51 |
| 200.0 | 99.99 |
Media Selection
Choose Media Around Your Processing Goals
Abrasive selection is a critical factor in achieving the desired wet blasting surface finish. We evaluate media against your processing conditions and goals, considering material type, shape, particle size, hardness and cost.
- Material
- Shape
- Particle Size
- Hardness
- Cost
