Wet Blasting Equipment

PP2000 Wet Blasting Equipment for Thin Plates

Conveyor wet blasting for simultaneous treatment of both sides of lead frames and other thin plate-shaped workpieces, with cleaning and rinsing.

Process Overview

Double-Sided Processing for Thin Plates

The PP2000 is designed for degreasing and cleaning both sides of lead frames and other thin plate-shaped workpieces. Its conveyor arrangement combines wet blasting with automatic cleaning and rinsing. Changing the clamping arrangement adapts the setup to different workpieces.

Applications listed for this model include semiconductor resin deburring, removal of overmolding from embedded LED chips, LED package deburring and removal of non-conductive layers from LTCC boards. Ceramic plates, metal plates, films and adhesion improvement for thin plates are also included in the product information.

Equipment Details

PP2000 Components

Controls

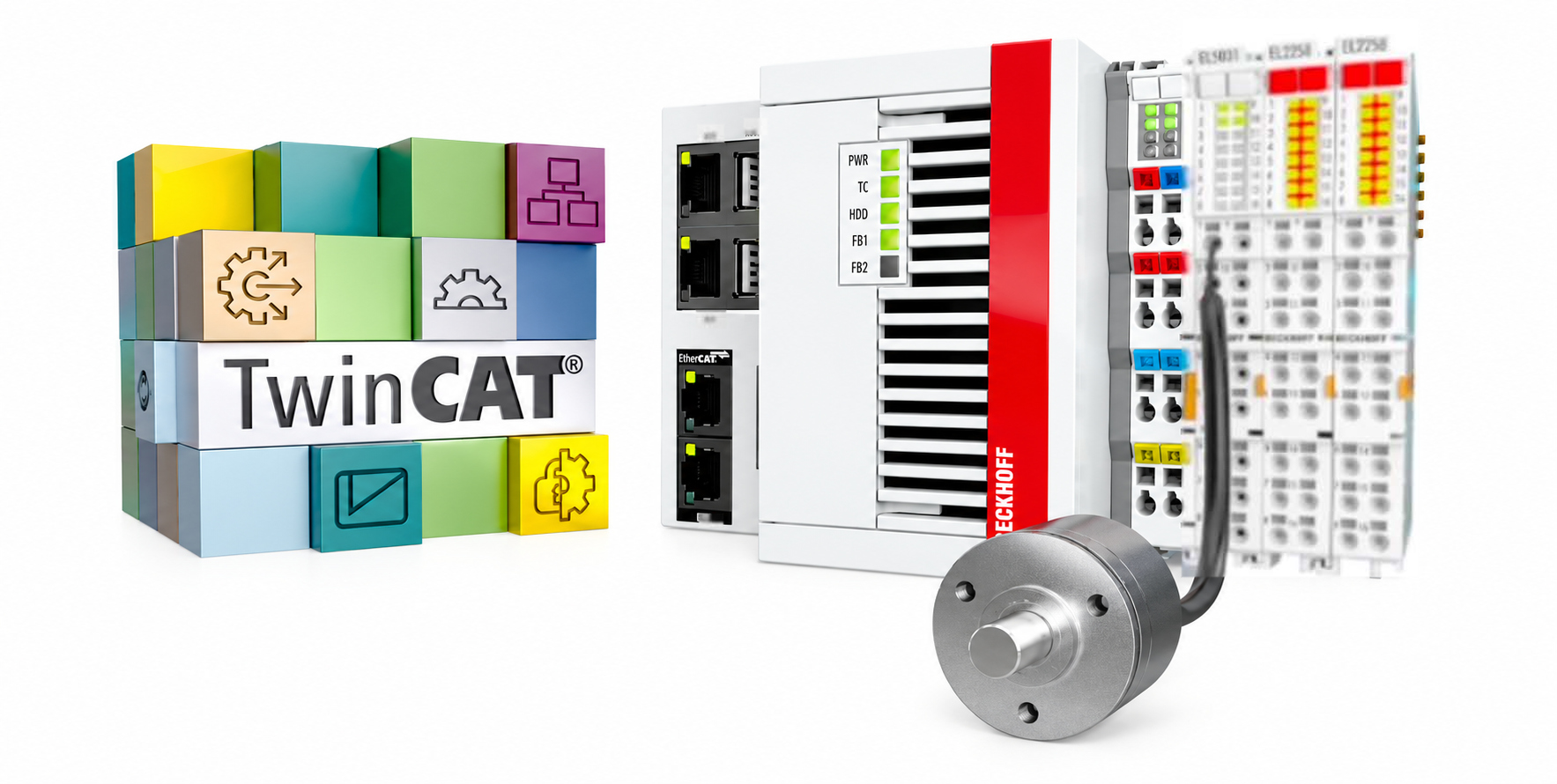

Control System

German Beckhoff control system
Safe and reliable
Integrate MES & ERP
French Schneider intouch human-machine interaction interface
Simple & efficient remote control and maintenance

Blasting

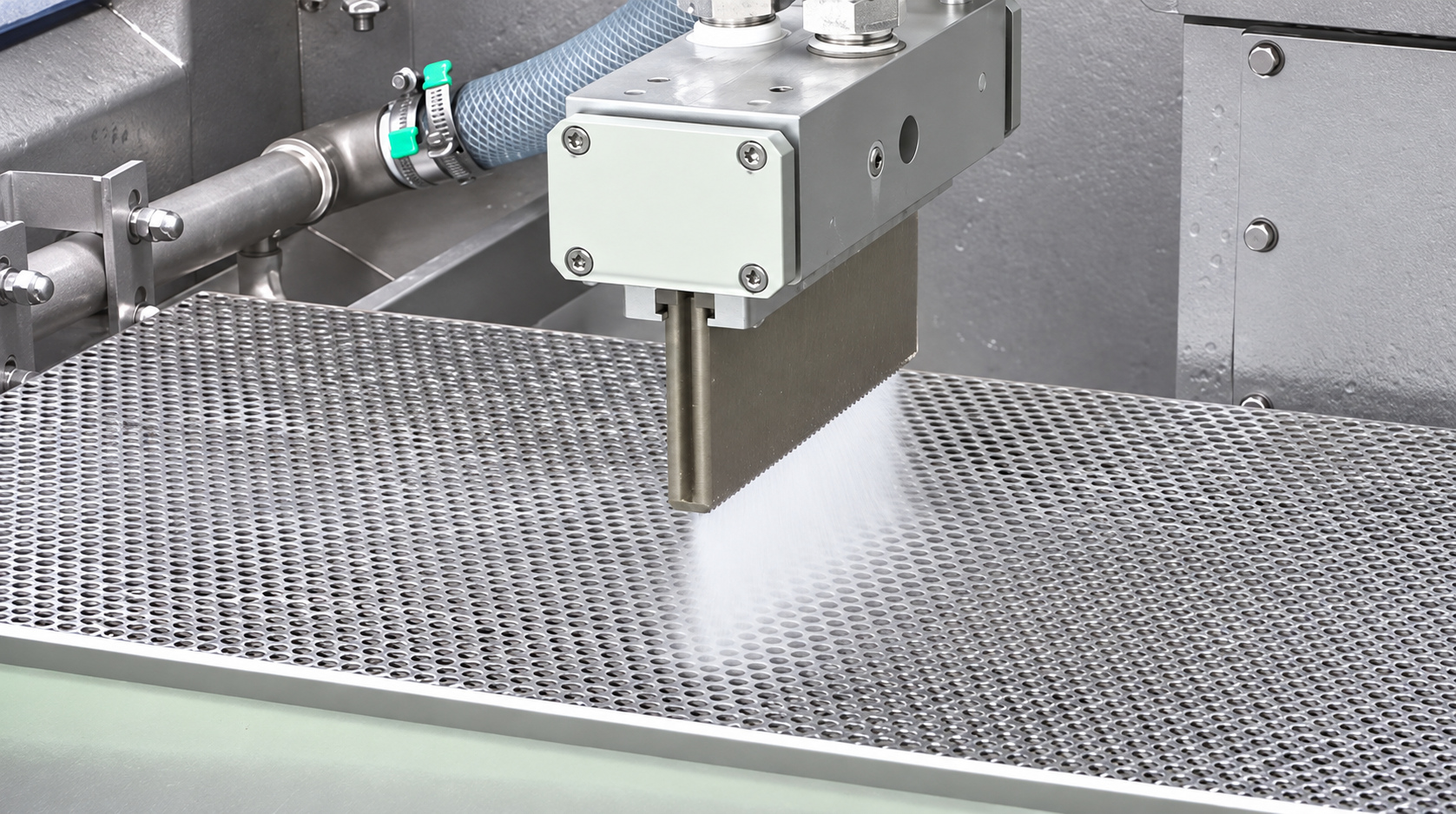

Blasting Chamber

Confirm the part material, plate thickness and treatment conditions for the proposed setup.

Uniform and consistent surface cleaning
Different-size abrasive possible as per requirement
Processing capacity depends on the dimension of workpiece

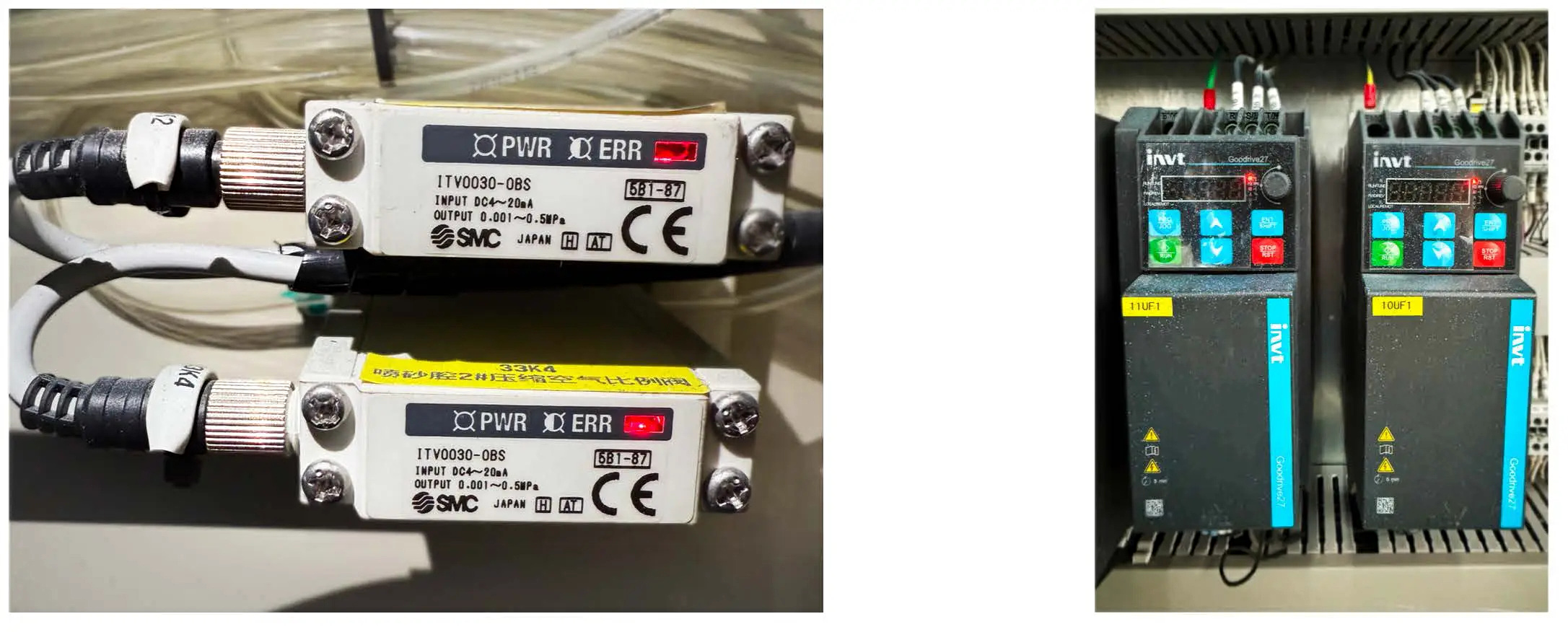

PID pressure-control illustration published with the PP2000 equipment — Pressure-control illustration; confirm the supplied configuration.

Controls

PID Closed-Loop Control

Constant and precise pressure
Stable slurry pressure

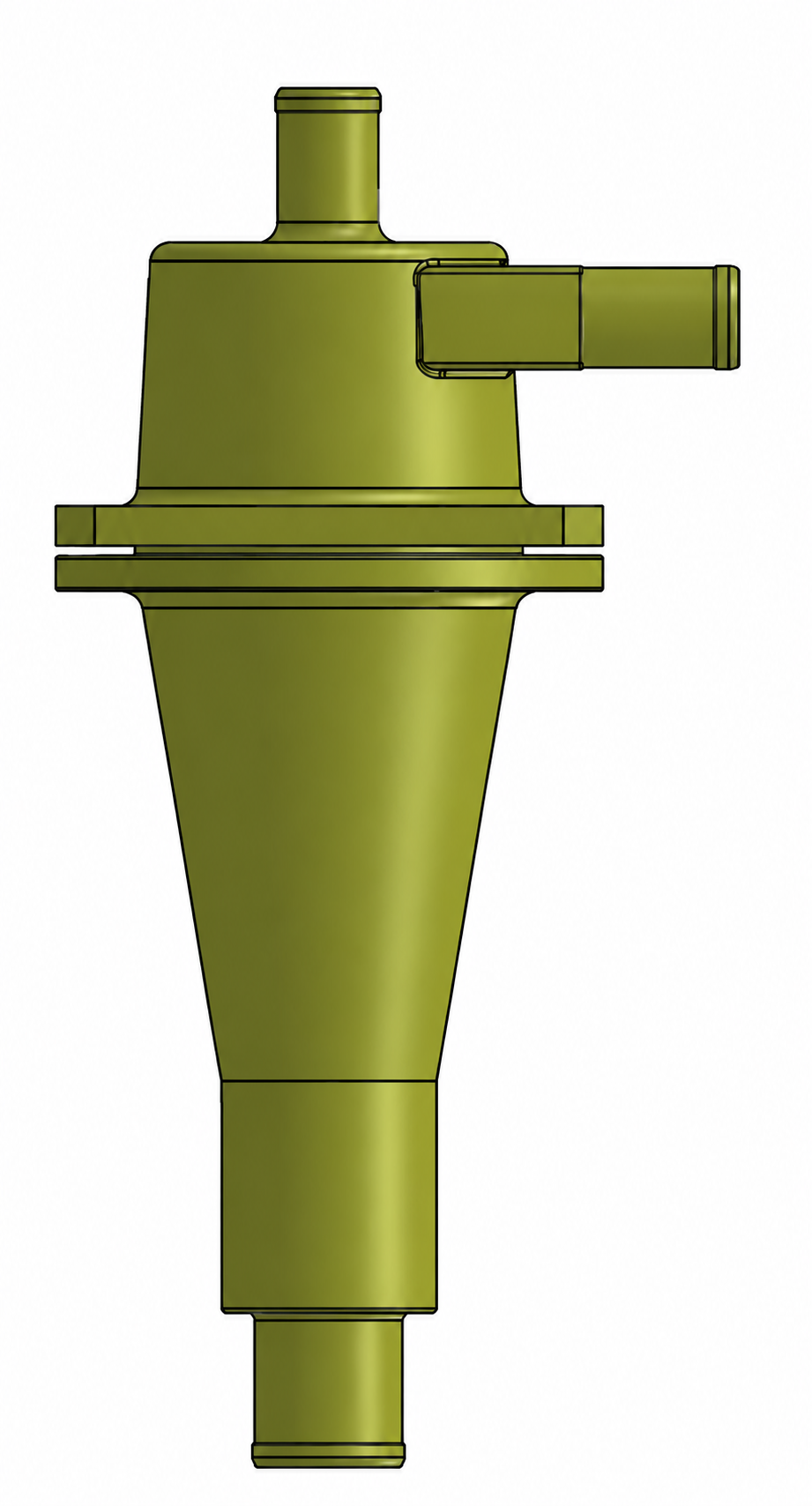

Waste-media separation illustration published with the PP2000 equipment — Separation-device illustration; confirm the supplied configuration.

Media Handling

Waste and Separation Device

Compact structure
High-precision separation
High-efficiency separation

Technical Data

PP2000 Specifications

Workpiece and Conveyor

Dimension: 2000(W) × 800(D) × 1000(H)mm
Workpiece Size: Width 10-80mm, Length 100-300mm
Conveyor Speed: <5m/min

Supply and Options

Powder Supply: AC 350V, 50HZ
Air Supply Pressure: 0-0.7MPa
Options: Loader, unloader, clamp, abrasive customized

Specifications shown are from the published product information. Confirm permissible material and thickness, clamping, conveyor operation and electrical supply for the proposed configuration.

Application Fit

Define Your PP2000 Configuration

Start with the thin plate and the treatment required on each side. These details help define the conveyor, clamping and process configuration.

Plate and Material: Part drawing or sample, material, width, length, thickness and any restrictions on clamping.
Treatment Target: The burr, resin or surface layer to remove, the required treatment on each side and the acceptance criteria.
Conveyor Requirement: Part feed, spacing, loading and unloading arrangements, and the required production quantity.
Site Conditions: Available space, electrical supply, compressed air and connections for cleaning and rinsing.
