TR3000 Spherical Blasting Media for Surface Finishing
Spherical wet blasting media for surface cleaning, semigloss finishing and peening. Treatment creates uniform micro-pits for a semigloss texture, and the media can be recycled and reused multiple times.
Material & Application
Surface Cleaning and Semigloss Finishing
TR3000 is described as spherical media made from materials such as glass bead or zirconia. The particles clean the workpiece surface by impact or rubbing, with minimal damage.
Semigloss Surface
Treatment forms uniform micro-pits on the surface, producing a semigloss texture.
Peening & Deburring
The particle size distribution is suited to peening or deburring.
Reusable Media
The media can be recycled and reused multiple times.
Applications
Explore Related Applications
Particle Size & Distribution
The published particle size range is normally 170–325 mesh for spherical glass or zirconia media.

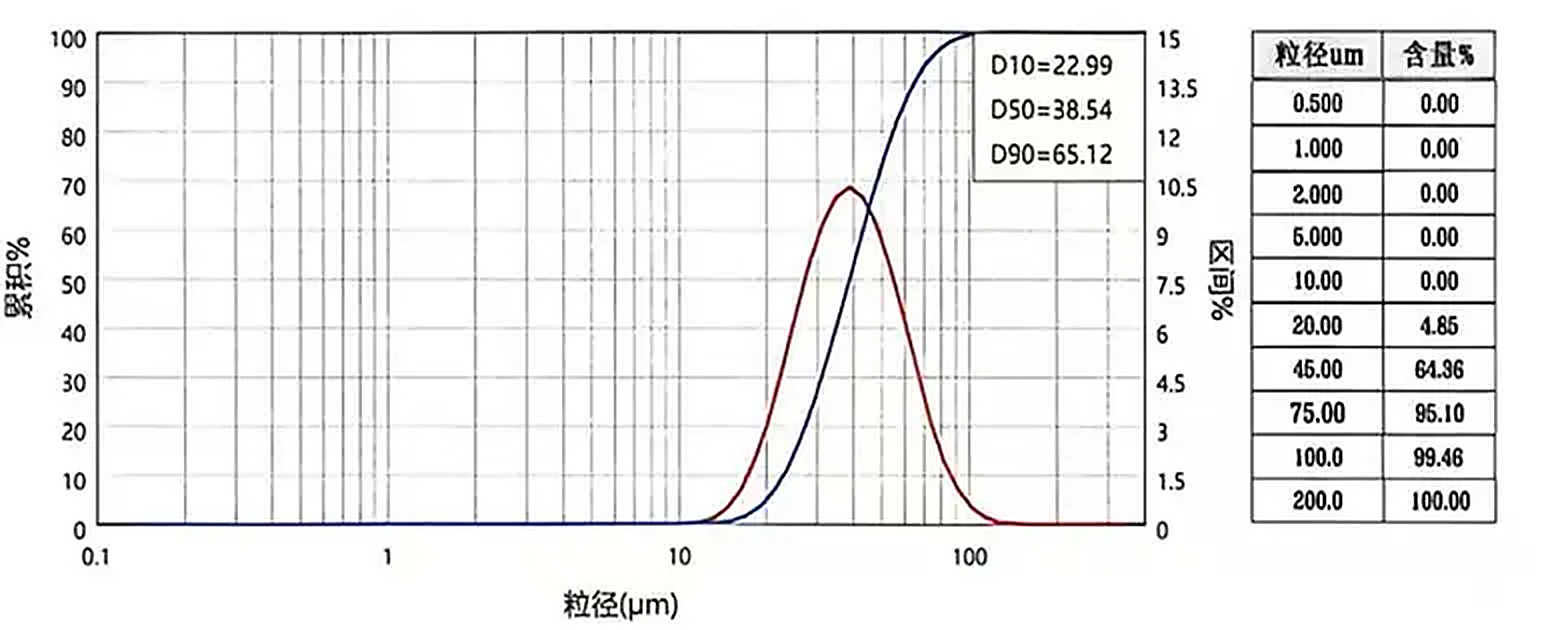

Published Distribution Example. Particle diameter (μm) is shown horizontally, with cumulative (%) and interval (%) axes. The values below are transcribed from this figure.
Values Shown in the Figure
- D10
- 22.99 μm
- D50
- 38.54 μm
- D90
- 65.12 μm
This figure illustrates the published particle size distribution. It does not define the specification of every supplied grade or batch. Confirm the required media grade for your application.
Figure Data and Description
Figure Description
The example shows a rising cumulative curve and a peaked interval curve against particle diameter (μm). The separate table lists particle diameter and content.
| Particle Diameter (μm) | Content (%) |
|---|---|
| 0.500 | 0.00 |
| 1.000 | 0.00 |
| 2.000 | 0.00 |
| 5.000 | 0.00 |
| 10.00 | 0.00 |
| 20.00 | 4.85 |
| 45.00 | 64.36 |
| 75.00 | 95.10 |
| 100.0 | 99.46 |
| 200.0 | 100.00 |
Media Selection
Choose Media Around Your Processing Goals
Abrasive selection is a critical factor in achieving the desired wet blasting surface finish. We evaluate media against your processing conditions and goals, considering material type, shape, particle size, hardness and cost.
- Material
- Shape
- Particle Size
- Hardness
- Cost
